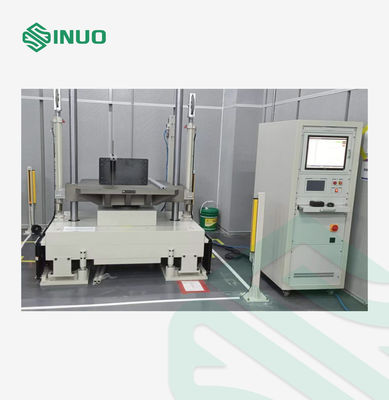

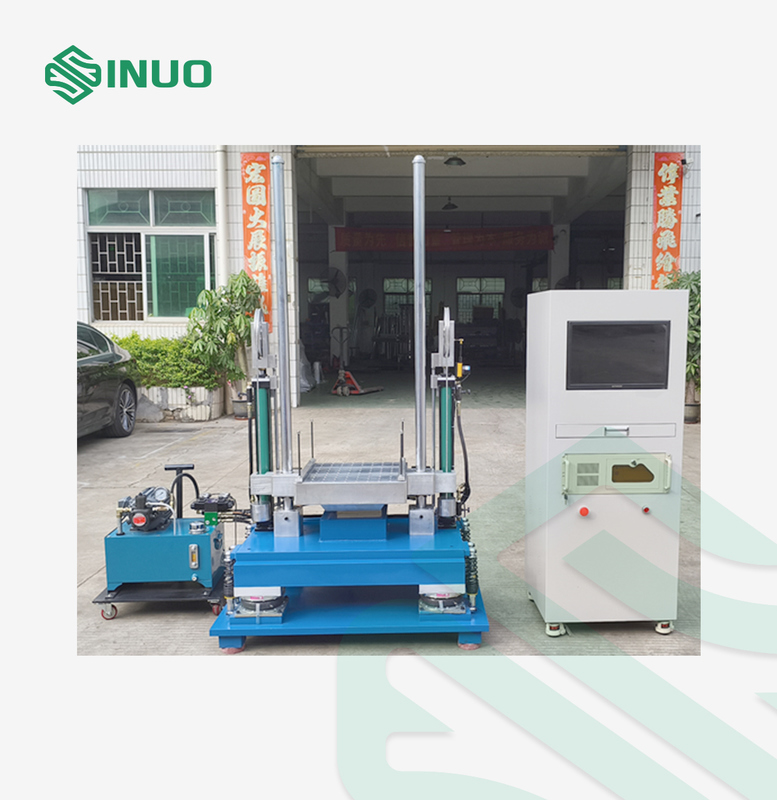

Acceleration Shock Test System Hydraulic Lift Mechanical Shock Test Bench

Acceleration Shock Test System Hydraulic Lift Mechanical Shock Test Bench

Nom De Marque:	Sinuo
Numéro De Modèle:	SN558-HSKT300
Nombre De Pièces:	1
Conditions De Paiement:	T / t
Capacité à Fournir:	10 sets par mois

Informations détaillées

Description du produit

Informations détaillées

Lieu d'origine:

CHINE

Certification:

Calibration Certificate (Cost Additional)

Plateforme de travail:

800 × 800 mm

Charge maximale:

300 kg

Accélération maximale en demi-sinus:

15—350G

Durée de l'impulsion sinusoïdale:

2,5 à 30 ms

Méthode de levage:

Ascenseur hydraulique

Fréquence d'échantillonnage:

192KHz

Taille de l'appareil:

1600 × 1300 × 2250 mm

Équipement total:

2000 kg

Détails d'emballage:

Emballage d'exportation

Capacité d'approvisionnement:

10 sets par mois

Description du produit

Acceleration Shock Test System Hydraulic Lift Mechanical Shock Test Bench

Complied Standards & Clauses

Conforms to MIL-STD-202F, IEC-68-2-27, MIL-STD-810F, and MIL-STD-883E, etc.

Product Overview

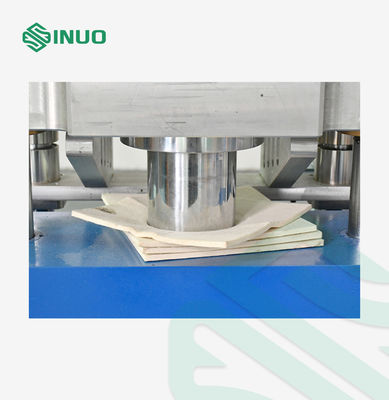

This device is primarily suitable for shock testing applications in electronics, aerospace, shipbuilding, military, automotive, and transportation. By selecting different waveform generators, it can perform shock tests using half-sine, post-peak sawtooth, or square waves.

Installation and Environmental Requirements

Ambient Temperature: 5℃ ~ +28℃ (average temperature within 24 hours ≤ 28℃)
Relative Humidity: ≤ 85% RH

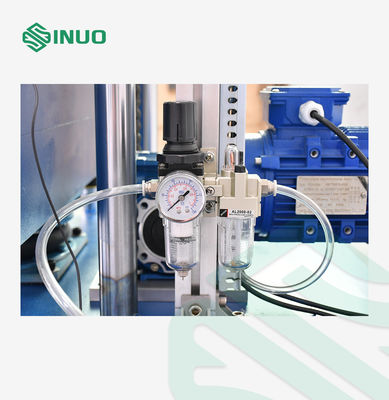

Air Supply: 0.5 – 0.8 MPa
Power Supply: Three-phase, five-wire system
Voltage Input: AC 380V
Frequency Fluctuation Range: (50 ± 0.5) Hz
Grounding Resistance: PGND cable resistance < 4 Ω
Installation Requirement:
The user shall provide an air or power switch of appropriate capacity at the installation site. This switch must be dedicated exclusively to this equipment.

Technical Parameters

Working platform	800 × 800 mm
Working platform Material	High-strength imported high-quality aluminum alloy
Maximum load	300kg
Half-sine peak acceleration	15—350 G
Half-sine pulse duration	2.5—30ms
Lifting method	Hydraulic lift
Equipment size	1600× 1300× 2250mm
Equipment weight	2000 kg
Measuring System
Input channel	2 channels
Sampling frequency	192KHz
Input form	Voltage, Electric Charge
Voltage range	-10v--+10v
Coupling method	AC, DC, ICP
Shock waveform	Half Sine
Communication interface	USB2.0
Support standard	National standard, national military standard, U.S. military standard, user-defined standard
Operating system	Microsoft Windows7/10
System Acceleration Sensor
Brand	YMC
Output method	Charge type
Sensitivity	3.93pC/g
Frequency range	0.5—12KHz
Acceleration range	±2500G
Working environment	-40~+160℃
Other Instructions
Power supply	380V±10％
